Facilities & Equipment

CONTAINER HANDLING EQUIPMENT
Description	Unit	Specification	Capacity

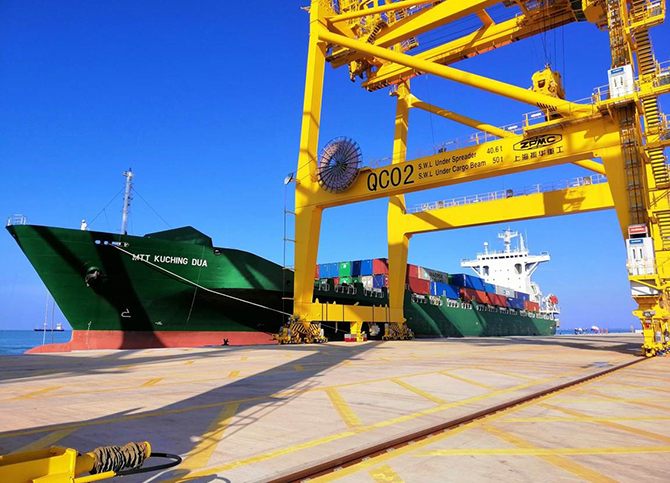

Quay Crane (QC)1	2	Under spreader	40.6 (t)
		Under beam	50 (t)
		Outreach	30 (t)
		Gauge	30.5 (t)
		Back reach	15 (t)
		Boom hoist	5 min/single
Rubber Tyre Gantry (RTG)	4	6 + 1 Stacking High, 6 rows	40.6 (t)
Reach Stacker (RSD)	1	5 Stack High	42 (t)
Empty Container Handler (ECH)	4	7 Stack High	9 (t) lifting

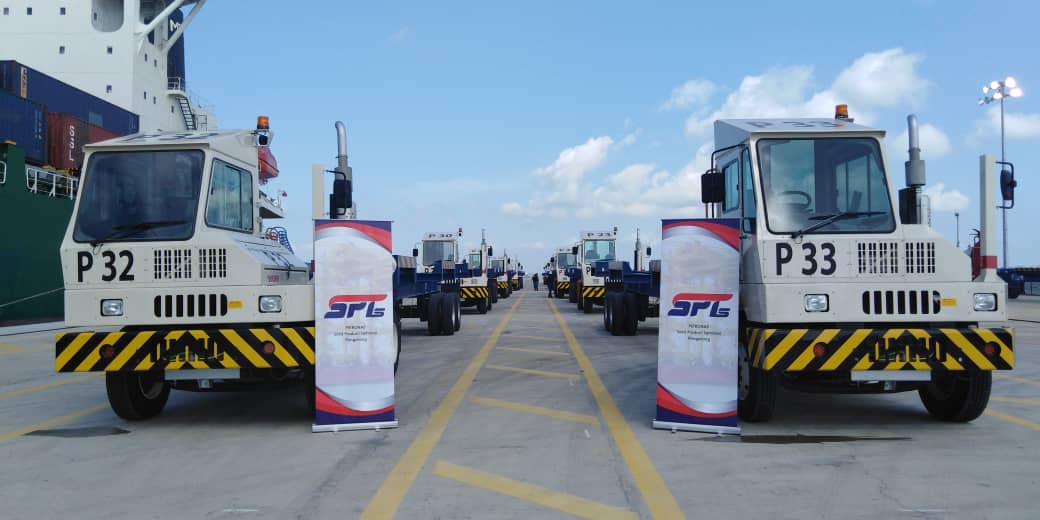

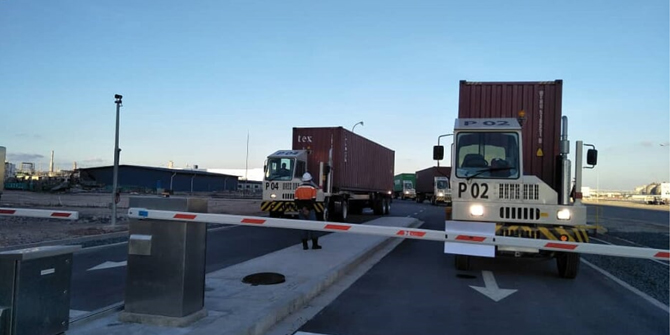

Prime Mover	41	220 hp	60,000 kg (pulling capacity)
Terminal Trailer	51	40 (t) chassis	32 (t)
Forklift	4	Lifting Height 5,010 & 6,025mm	3 (t)

SULPHUR HANDLING EQUIPMENT
Description	Unit	Specification	Capacity

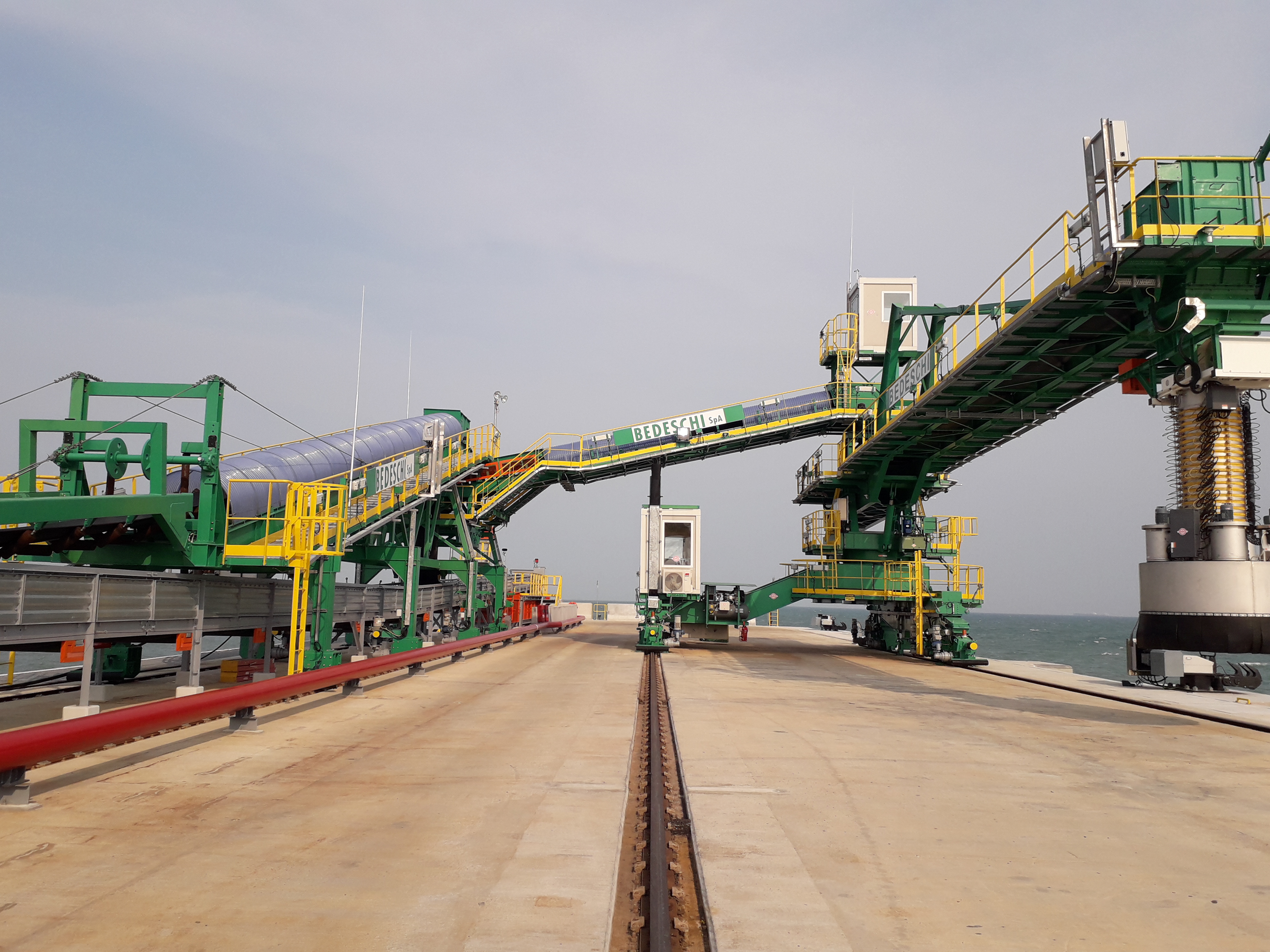

Shiploader (linear)	1	70kW total	450 rated mt/hr
Shiploader (linear)	1	Telescopic dust-free chute	450 rated mt/hr

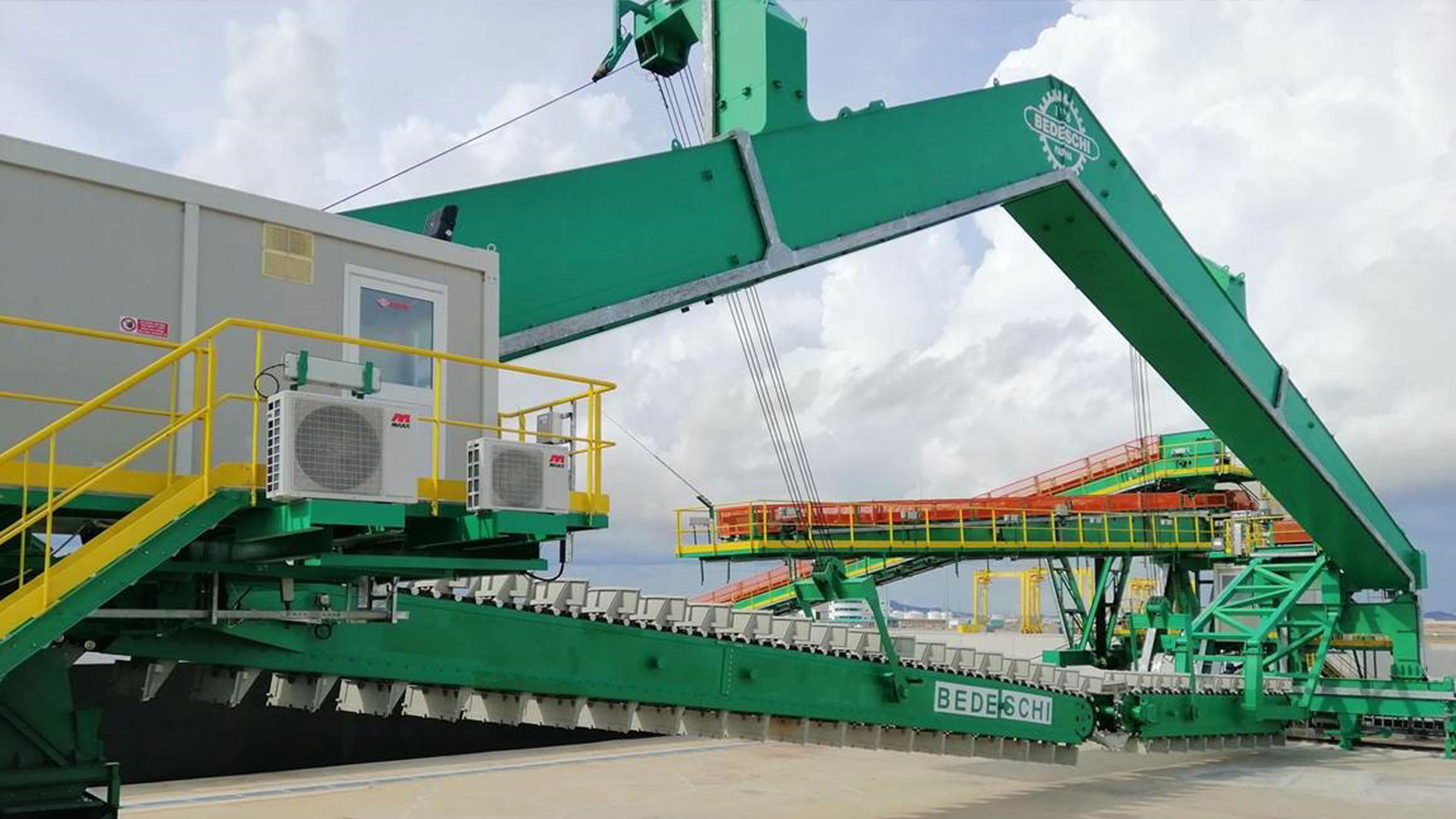

Portal Reclaimer	1	Twin Boom	450 rated mt/hr
Stacker	1	Luffing Type	150 rated mt/hr

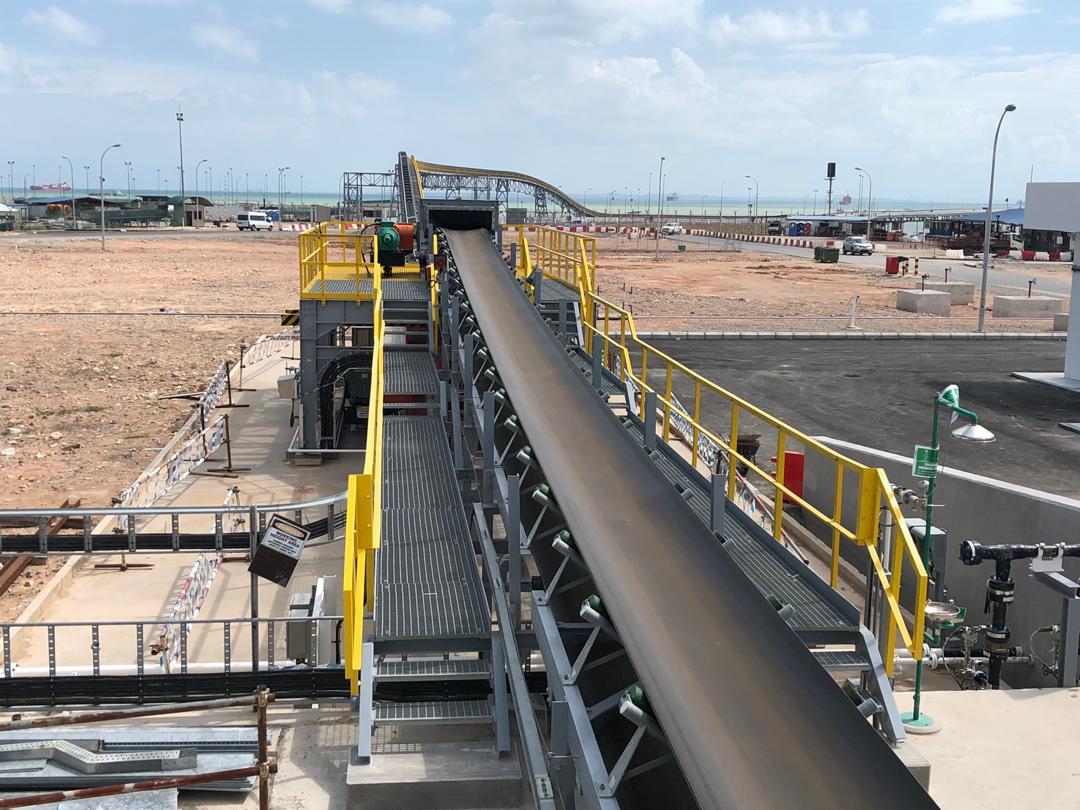

Conveyor belt
Tipper Conveyor	1	1000mm wide, 55kW (VSD)	450 rated mt/hr
Pipe Conveyor	1	1200mm wide, 2x 200kW (VSD), 2km distance	450 rated mt/hr
Reclaimer Conveyor	1	1000mm wide, 55kW (VSD)	150 rated mt/hr
Feeder Conveyor	1	100mm wide, 22kW	150 rated mt/hr
Stockpile	1	31.3m x 198m x 10.1m	33 160 mt
Tipper Truck	8	480 hp Euro 3	31.2 mt capacity
Shovel	1	Gross 95kW 127HP @2000rpm	9425 - 9555 kg
Shovel	1	Net 92kW 123HP @2000rpm	1.7 - 2.4m³ bucket capacity
